Get started on the command line

This track installs the openadapt command and runs the bundled tutorial. The tutorial uses MockMed, a synthetic clinic app with made-up patients, so it needs no account, no app of your own, and no operating-system permissions.

The engine supports Python 3.10, 3.11, and 3.12. With uv, you don't need a matching Python: uv downloads Python 3.12 for the run.

Try it without installing

uvx --python 3.12 openadapt flow tutorial

The tutorial starts MockMed on this computer, records the bundled demonstration in a headless browser, compiles it, certifies the bundle, and runs it under the Standard profile. It then reads the saved record back through MockMed's read-only system-of-record API, which is independent of the screen. If the browser that OpenAdapt drives isn't installed yet, the first run downloads it.

A healthy run ends VERIFIED and writes a local receipt. The run enables no model call and no Cloud call. Add --headed to watch the browser.

Install the command

To keep openadapt on your PATH, use the installer script. It installs uv if needed, then installs openadapt with Python 3.12 as an isolated tool.

curl -fsSL https://openadapt.ai/install.sh | sh

powershell -c "irm https://openadapt.ai/install.ps1 | iex"

On Python 3.10, 3.11, or 3.12:

python -m pip install --upgrade openadapt

Then run the tutorial with the installed command:

openadapt flow tutorial

What the tutorial writes

The tutorial writes everything under its output directory. The default is tutorials/tutorial-<UTC timestamp> in the current directory, and --out sets another one.

Path What it is
<out>/recording/ The recorded demonstration: frames, events, and metadata.
<out>/bundle/ The compiled, certified workflow bundle.
<out>/run/REPORT.md The illustrated run report, for people.
<out>/run/report.json The same report, for programs.
<out>/run/receipt.json The local receipt. It's written only for a VERIFIED run, next to receipt.md and receipt.png.

What these look like

These excerpts come from one real tutorial run with openadapt 1.17.0. Your run has different digests, IDs, and timings. … marks where a file is trimmed.

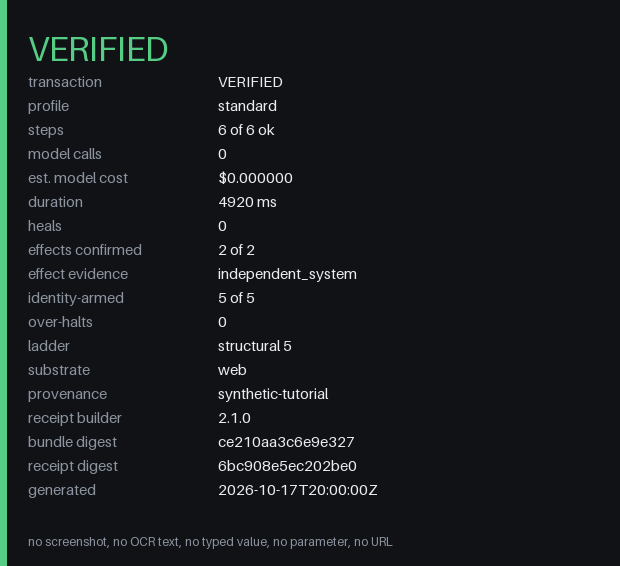

receipt.png, the shareable picture of the receipt:

The receipt image from a VERIFIED tutorial run: 6 of 6 steps ok, 0 model calls, 2 of 2 effects confirmed, effect evidence independent_system

report.json, with the outcome, one step, and its effect checks. The results list has one entry per step; this is the last one, which saves the encounter. Both effect checks are REST reads of MockMed's record store, not reads of the screen.

{
  "workflow_name": "local-quickstart",
  "execution_profile": "standard",
  "execution_outcome": "VERIFIED",
  "transaction_outcome": "VERIFIED",
  "production_eligible": true,
  "outcome_envelope": {
    "version": "openadapt.execution-outcome/v1",
    "outcome": "VERIFIED",
    "required_contracts": {"authorization": 1, "identity": 5, "postcondition": 9, "effect": 2},
    "passed_contracts": {"authorization": 1, "identity": 5, "postcondition": 9, "effect": 2},
    …
  },
  "effect_journal": [
    {
      "step_id": "step_005",
      "intent": "click 'Save Encounter'",
      "consequential": true,
      "attempt_state": "delivered",
      "observed_effect": "present",
      "effect_verified": true,
      "verification_performed": true,
      …
    }
  ],
  "results": [
    …
    {
      "step_id": "step_005",
      "intent": "click 'Save Encounter'",
      "ok": true,
      "risk": "irreversible",
      "resolution": {"rung": "structural", "confidence": 1.0, …},
      "identity": {"status": "verified", "mode": "structured", …},
      "postconditions_ok": true,
      "effect_verified": true,
      "effect_results": [
        "[rest] record_written: CONFIRMED — exactly 1 record(s) match the target selector",
        "[rest] field_equals: CONFIRMED — field 'note' equals the expected value"
      ],
      "effect_evidence": [
        {
          "substrate": "rest",
          "final_verdict": "confirmed",
          "observed_effect": "present",
          "endpoint_scope": "loopback",
          …
        },
        …
      ],
      …
    }
  ],
  "heal_count": 0,
  "model_calls": 0,
  "external_network_calls": "none",
  …
}

receipt.json, the counts behind the image. It's built from a fixed list of fields, so it holds no screenshot, typed value, parameter, or URL.

{
  "schema_version": "openadapt.run-receipt/v2",
  "outcome": "VERIFIED",
  "transaction_outcome": "VERIFIED",
  "profile": "standard",
  "steps_ok": 6,
  "steps_total": 6,
  "effects_confirmed": 2,
  "effects_required": 2,
  "effect_tier_reached": "independent_system",
  "identity_armed": 5,
  "identity_required": 5,
  "model_calls": 0,
  "external_network_calls": "none",
  "provenance": "synthetic-tutorial",
  "bundle_digest": "ce210aa3c6e9e32744e7447fd0a5d3620b78d569defbf169b4593b661b7e4866",
  "receipt_digest": "6bc908e5ec202be0669e71c86e9b0f2cebbbf88685fcaebb6f50c74e3a8b7850",
  …
}

Read the report, draw the compiled program, and list its coverage gaps:

less <out>/run/REPORT.md
openadapt flow visualize <out>/bundle --out graph.html
openadapt flow lint <out>/bundle

The tutorial exits 0 when the run is VERIFIED, 1 on any other outcome, and 2 when it refuses to start. Run outcomes lists every outcome.

Make it stop on purpose

openadapt quickstart --break-it

This runs the same tutorial, then reruns the same certified bundle against a MockMed server that shows a saved banner but rejects the write. Every check on the screen passes. The independent read of the system of record finds no record, so the run ends HALTED instead of reporting success.

The rerun's transaction outcome is RECONCILIATION_REQUIRED, shown as "Check the record". The engine saw a write attempted and refuted, and it doesn't claim that nothing was written unless it can prove it. In this synthetic store, the record count stays at zero. The halted run gets no receipt. openadapt flow tutorial --break-it does the same in the tutorial's own output directory.

openadapt quickstart writes to openadapt-quickstart in the current directory, or openadapt-quickstart-2 and so on when that exists. The halted rerun's report is in run-broken/REPORT.md under that directory. It never overwrites an existing directory.
