Read a compiled program and its live evidence

A compiled bundle is a program, not a video. Before you approve it, inspect the steps it can take, the evidence each action needs, and the paths that stop the run. During a run, inspect a second object: the exact program occurrence and the current evidence that the runtime bound to it.

The public synthetic console plays one retained event trace. The program stays fixed while the current observation, target resolution, identity check, action, screen check, and effect check advance.

Two timelines, four views

The workbench keeps two timelines separate.

1. The program artifact moves from recorded evidence to a compiled version. A repair creates a new candidate version. It doesn't change the version that is running.
2. One live run moves through current observation, target resolution, identity, action, and verification. Each event has an exact sequence number.

The four views answer different questions:

View	Question	Source
Program map	What can this version do?	Compiled nodes and exact edges
Live relation	How does the current observation relate to the retained evidence?	One frame-bound runtime occurrence
Evidence lanes	Which target, identity, screen, and effect controls exist or passed?	Declared contract or exact run verdict
Repair	What would change in a new version?	A separate candidate and its review state

Do not combine a declared control with a live verdict. A compiled node can say that an identity gate is armed. Only a bound run event can say that the current identity passed.

Read the program map

The program map follows the emitted edge targets. It does not arrange the nodes as if the bundle were a linear list. Branches, loop returns, exception paths, and terminal states remain visible.

For each node, inspect these lanes:

• Target evidence. The retained structural locator, template, OCR anchor, relational landmarks, or geometry that the resolver may use.
• Identity. The pre-action identity contract and whether it is armed.
• Screen check. The postcondition that the runtime checks after the action.
• Effect check. The independent system-of-record check for a declared business effect.
• Stop rules. The conditions that make the runtime halt before or after a delivery boundary.

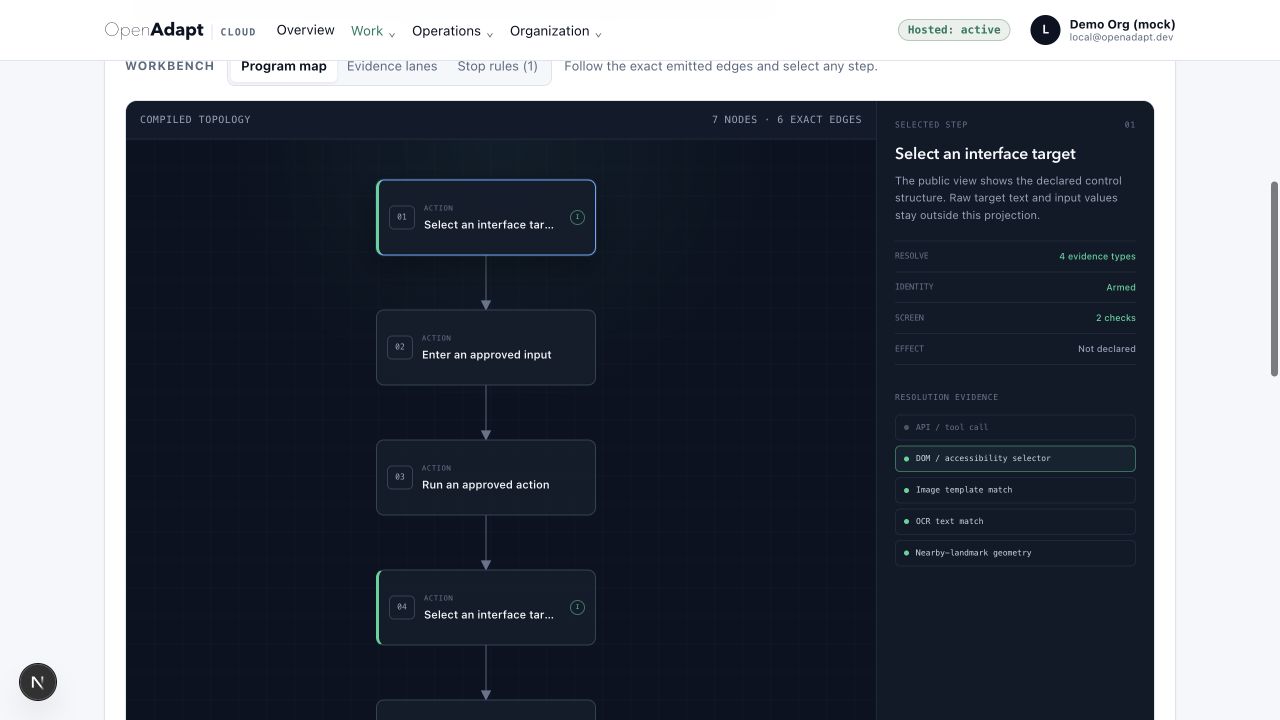

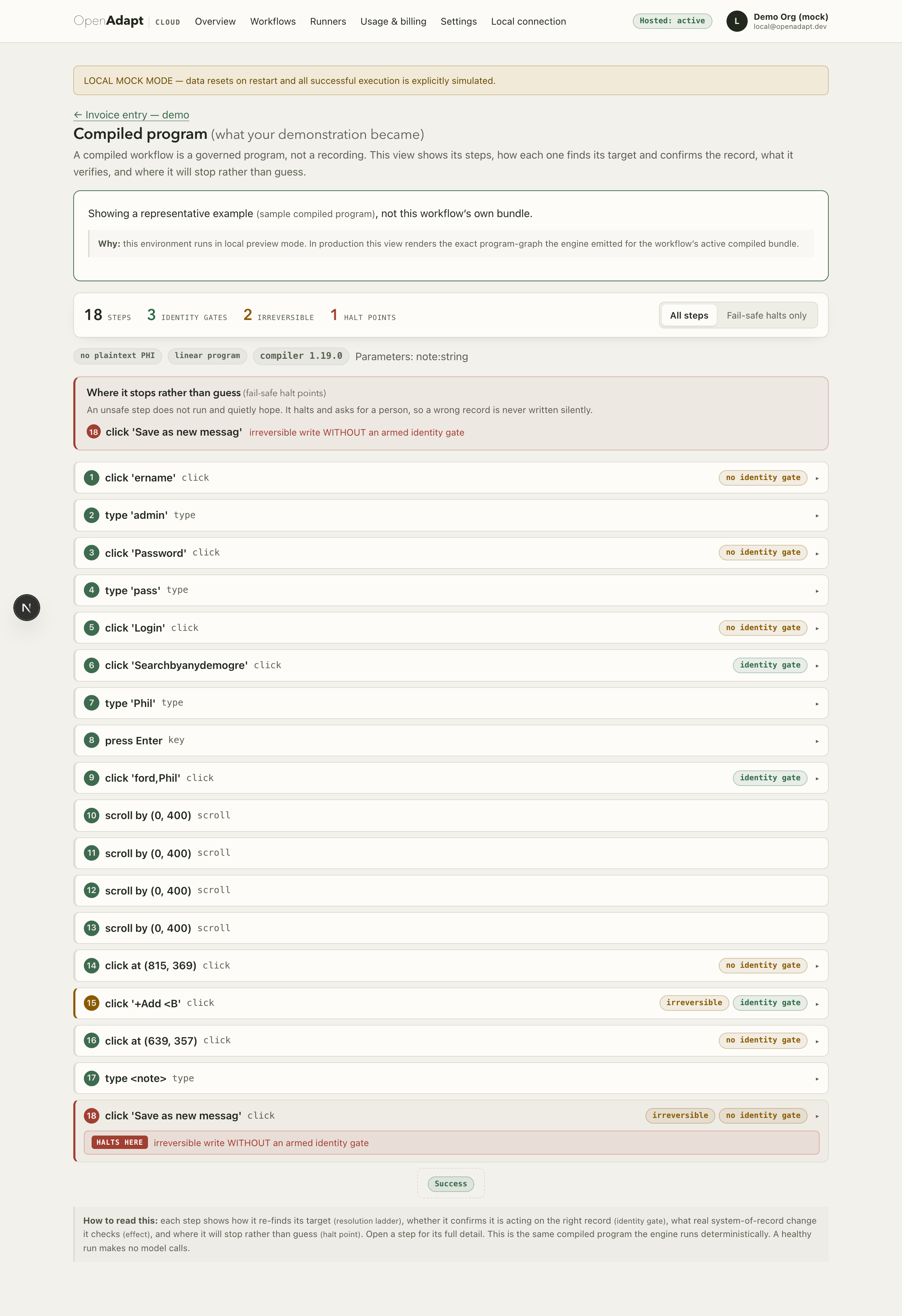

Cloud shows the shared graph projection. Select a node to inspect its declared resolution, identity, screen, and effect lanes.

A terminal node named End of declared steps means that graph traversal ended. It does not prove VERIFIED. The run outcome still depends on the exact authorization, identity, postcondition, and effect evidence required by the execution profile.

--format mermaid writes the same map as a flowchart you can paste into a review note. This one is the public-safe projection of a bounded loop:

flowchart TD
  n0{"Repeat the bounded steps"}
  n1("Enter an approved input")
  n2("Enter an approved input")
  n3("Send an approved key<br/><small>effect · irreversible</small>")
  n4{{"End of declared steps"}}
  n0 -->|declared loop| n1
  n1 --> n2
  n2 --> n3
  n3 --> n0
  n0 --> n4
  classDef irreversible stroke:#b4530a,stroke-width:2px;
  classDef halt stroke:#b21f2d,stroke-width:2px;
  class n3 irreversible;
  class n3 halt;

n0 owns the loop. The edge from n3 back to n0 is the next item. The edge from n0 to n4 is the exit. Open the HTML export to inspect each node's resolution, identity, screen, and effect lanes.

Parents of children stay parents

visualize on a compiled bundle emits that bundle's ProgramGraph: steps, ladders, gates, halt points.

visualize on a compose directory (composition.json, schema openadapt.composition/v1) draws each compiled child as one node. Handoff edges are labeled with the effect-bound parameter names they copy, never a window title or a URL. Sequence edges follow --after, or --child order.

visualize on a process-contract directory (process-contract.json, schema openadapt.process-contract/v0) draws each independently admitted child (name, admission_id) and the same kind of handoff edge.

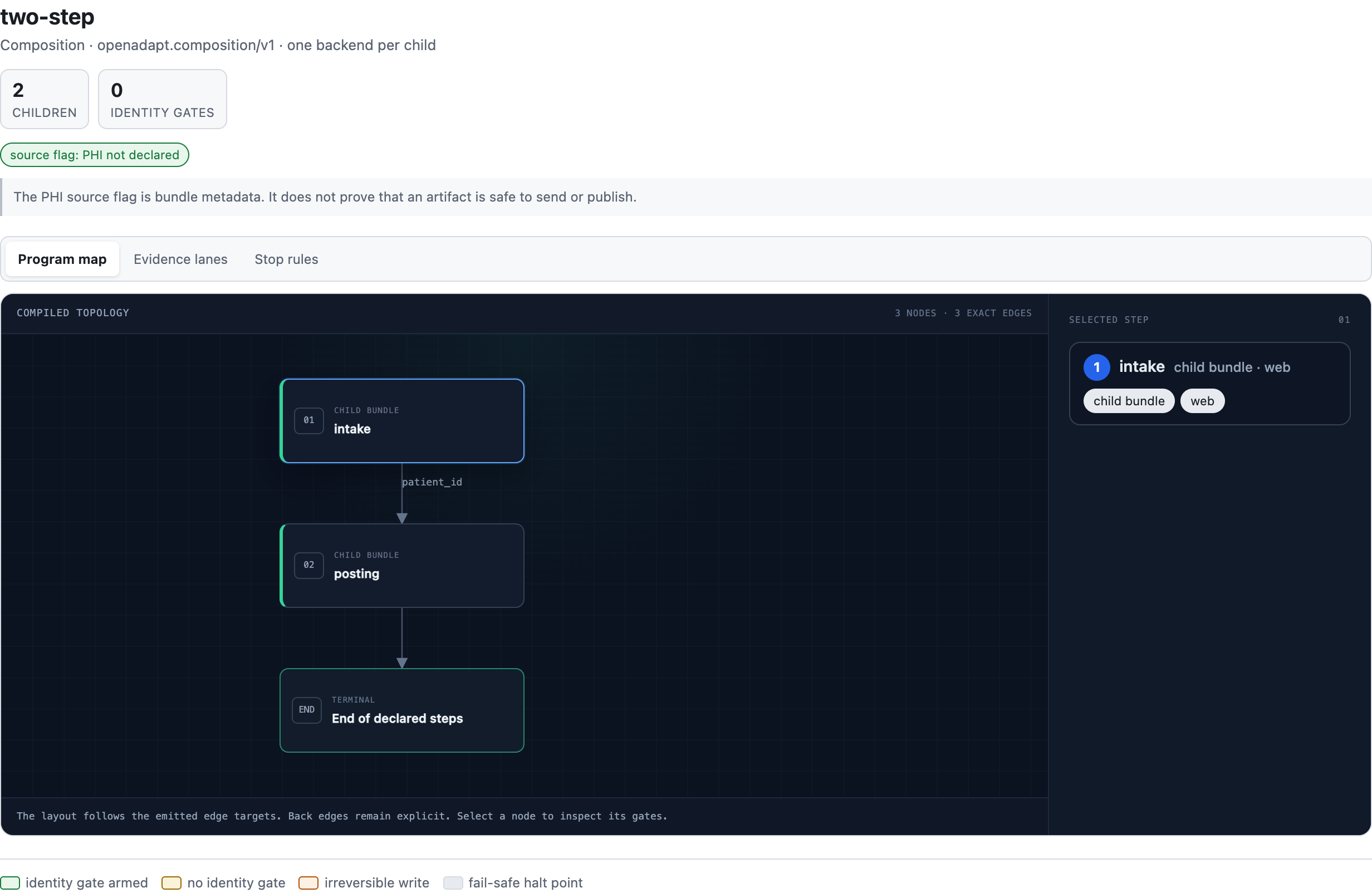

This is the HTML visualize writes for a two-child compose directory. Each child is one node. The handoff is the effect-bound parameter patient_id. Intake's own steps stay inside intake-bundle.

A compose parent. Two child bundles, one handoff, one terminal. Representative synthetic composition from the visualize emission for composition.json.

flowchart TD
  n0(["intake<br/><small>web</small>"])
  n1(["posting<br/><small>linux</small>"])
  n2{{"End of declared steps"}}
  n0 --> n1
  n1 --> n2
  n0 -->|patient_id| n1
  classDef irreversible stroke:#b4530a,stroke-width:2px;
  classDef halt stroke:#b21f2d,stroke-width:2px;

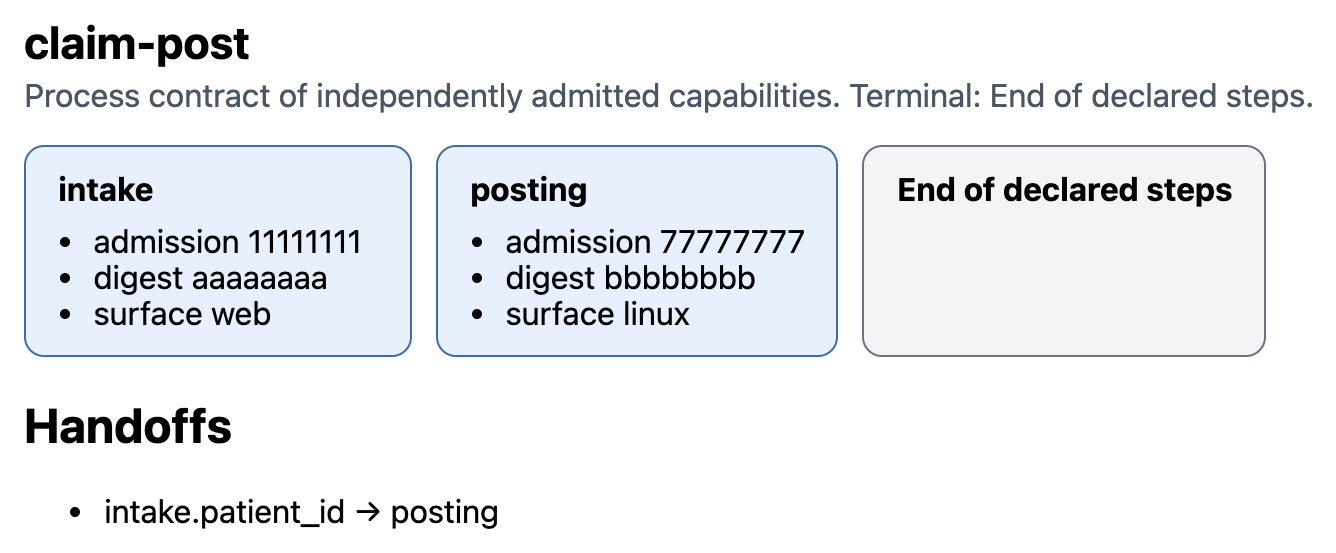

A process parent uses the same two children after each one is admitted. Each node carries a short admission_id and digest. Handoff edges are dashed.

A process parent of two admitted capabilities. Representative synthetic process contract. The admission_id and digest values are fixtures, not a live tenant.

flowchart TD
  intake["intake<br/>adm 11111111<br/>digest aaaaaaaa<br/>web"]
  posting["posting<br/>adm 77777777<br/>digest bbbbbbbb<br/>linux"]
  end_declared_steps["End of declared steps"]
  intake --> posting
  posting --> end_declared_steps
  intake -.->|patient_id| posting
  classDef admitted fill:#e8f0fe,stroke:#3b6ea5,color:#111;
  classDef terminal fill:#f3f4f6,stroke:#6b7280,color:#111;
  class intake,posting admitted;
  class end_declared_steps terminal;

Both parents end at a terminal titled End of declared steps, not Success. Traversal ended. The parent is VERIFIED only when every child's receipt says so.

The parent view doesn't inline a child's steps. Open the child bundle for its program map. See Sequence work across two applications and Process contracts.

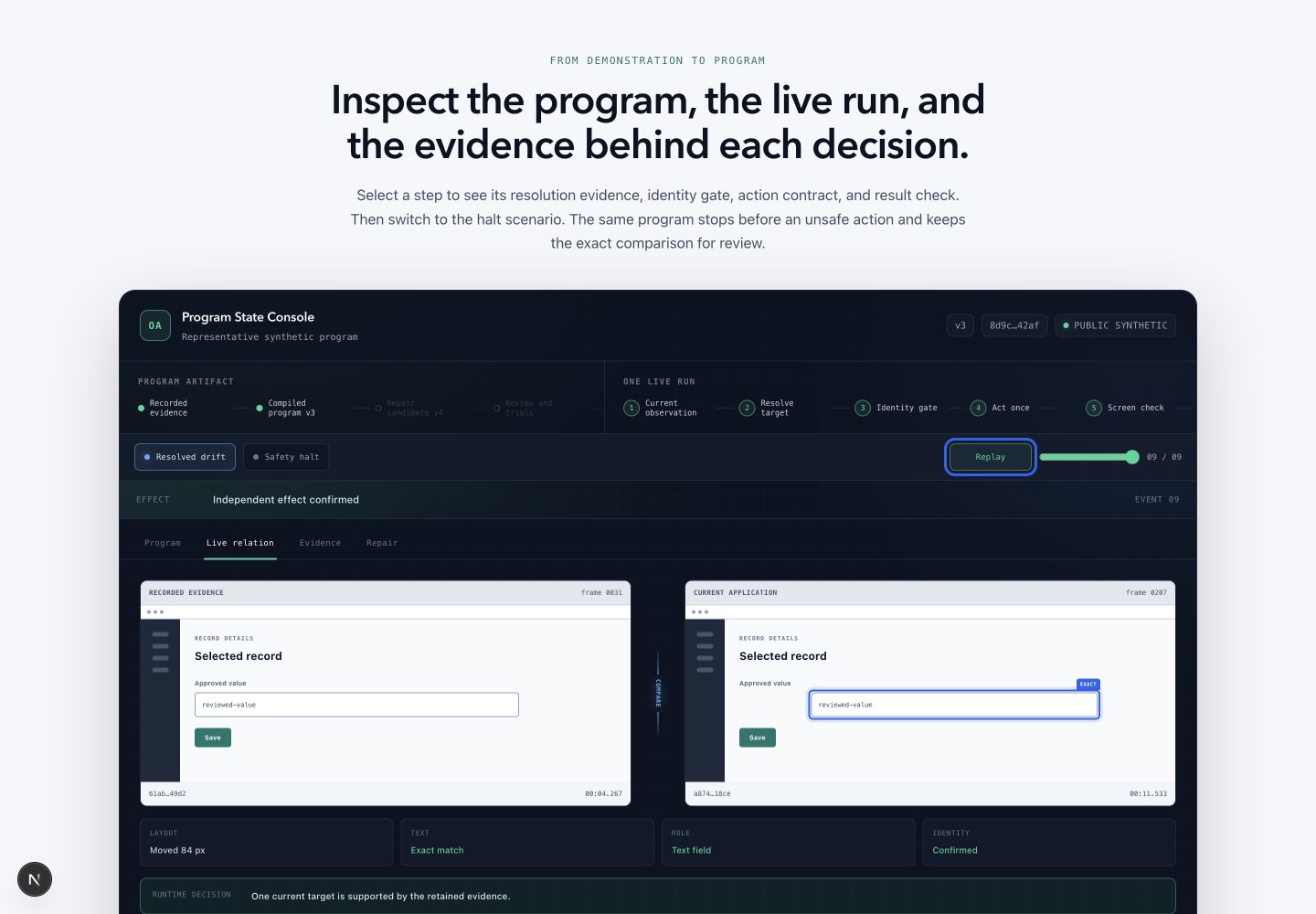

Follow one live occurrence

The same program node can run more than once inside a loop. A useful live view must identify one occurrence. It should retain the graph id, state id, program scope, incoming edge, and event sequence when the runtime provides them. The UI must not identify an occurrence from a row number or animation time.

The current marker advances only when the runtime emits an event. Controlled playback is useful for review, but it must replay the retained sequence. It must not infer a missing phase.

The comparison view can show:

• the retained recorded frame and its asset reference;
• the exact current frame and decoded frame index;
• typed facts such as role, text, layout delta, candidate count, and identity;
• the resolver decision and the evidence rung that supported it;
• the exact target rectangle when the runtime bound it to the displayed frame;
• the post-action screen check and independent effect verdict.

If the runtime did not retain a frame binding, show the status without a target rectangle. Do not carry a rectangle forward, interpolate it, or rebuild it from a selector in the viewer.

Show disagreement without hiding it

A single similarity score is not enough. It can hide a disagreement that matters. Show the typed facts that drove the decision.

Difference	Useful display	Safe runtime meaning
Layout moved	Recorded and current rectangles, plus the measured delta	The target can still resolve if retained evidence supports one current candidate
Text changed	Recorded text, current text, and match verdict	Continue only if the declared text rule passes
Role changed	Recorded and current structural role	Treat a required role mismatch as refuted evidence
Multiple candidates	Candidate count and ambiguity reason	Halt before action
Identity conflict	Bound identity signals and their verdicts	Halt before action
Fresh frame changed	Pre-action observation and revalidation verdict	Halt or reconcile according to the delivery state
Effect is uncertain	Independent effect evidence and transaction outcome	Return RECONCILIATION_REQUIRED; never retry blindly

The viewer can use a neutral difference overlay for review. It cannot turn a pixel difference into target resolution, identity proof, or effect proof.

Keep repair separate from execution

A halted run can retain useful repair evidence. A repair view should show the source version, the proposed locator or contract change, the changed nodes and edges, the reason for the proposal, and the trials required before promotion.

The proposal is a new artifact. It does not edit the running version. Review, qualification, and admission remain separate steps. If a repair candidate is not bound to the exact halt evidence, the UI should not present it as the fix for that run.

Use the right projection

OpenAdapt uses the same graph contract across its surfaces, but each surface has a different data boundary.

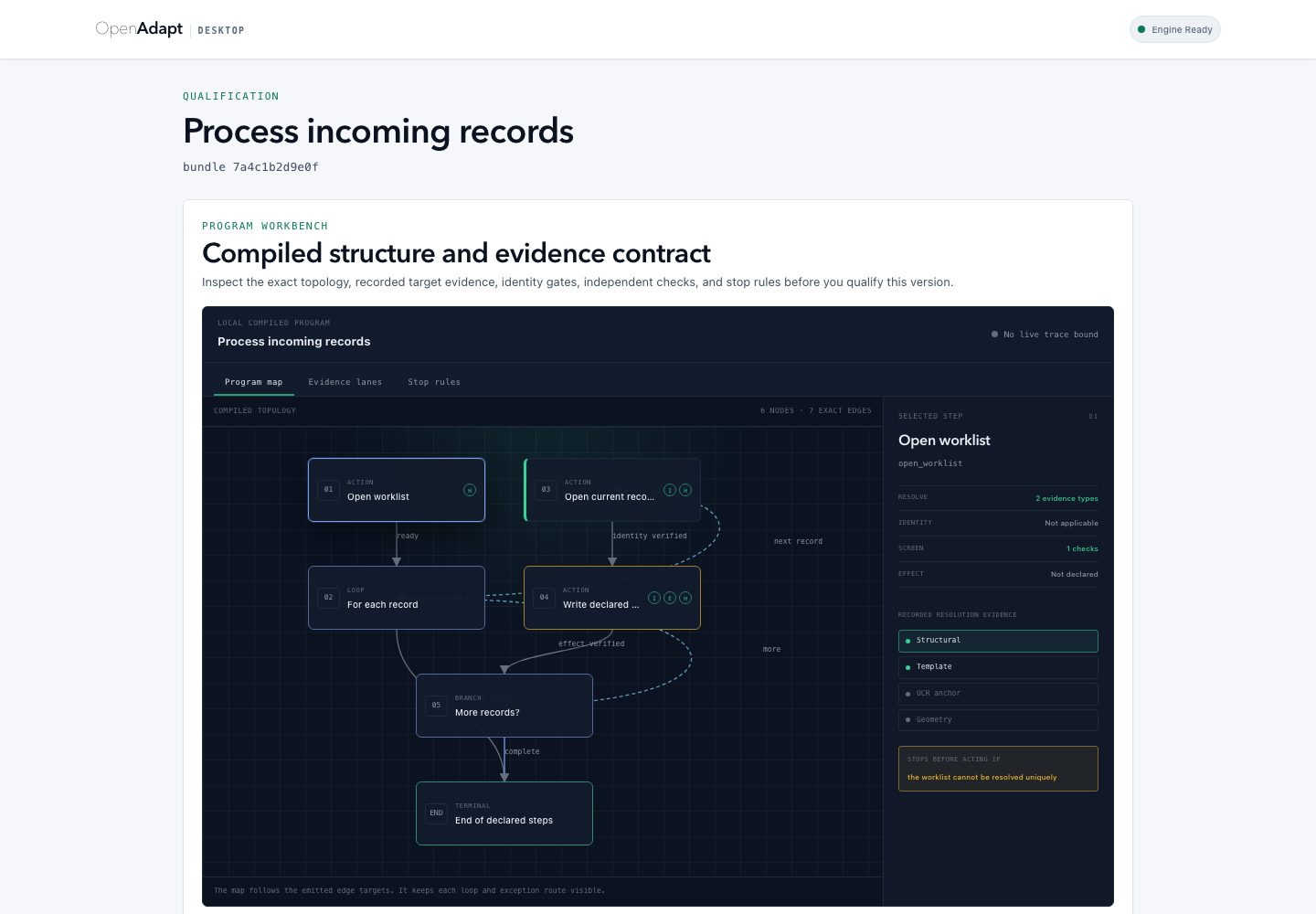

Desktop can show local operator detail. It says when no exact live trace is bound, so a static qualification contract cannot look like runtime evidence.

Surface	Projection	Intended use
Desktop	operator-local	Local qualification and private evidence review
Cloud	remote-safe	Tenant-bound topology and reviewed remote-safe labels
Website	public-synthetic	Interactive product explanation with synthetic evidence
Exported report	sanitized-derivative	Hash-bound review artifact with an explicit egress decision

A projection removes fields from a view. It does not sanitize the source bundle. Keep the original inside its trusted boundary.

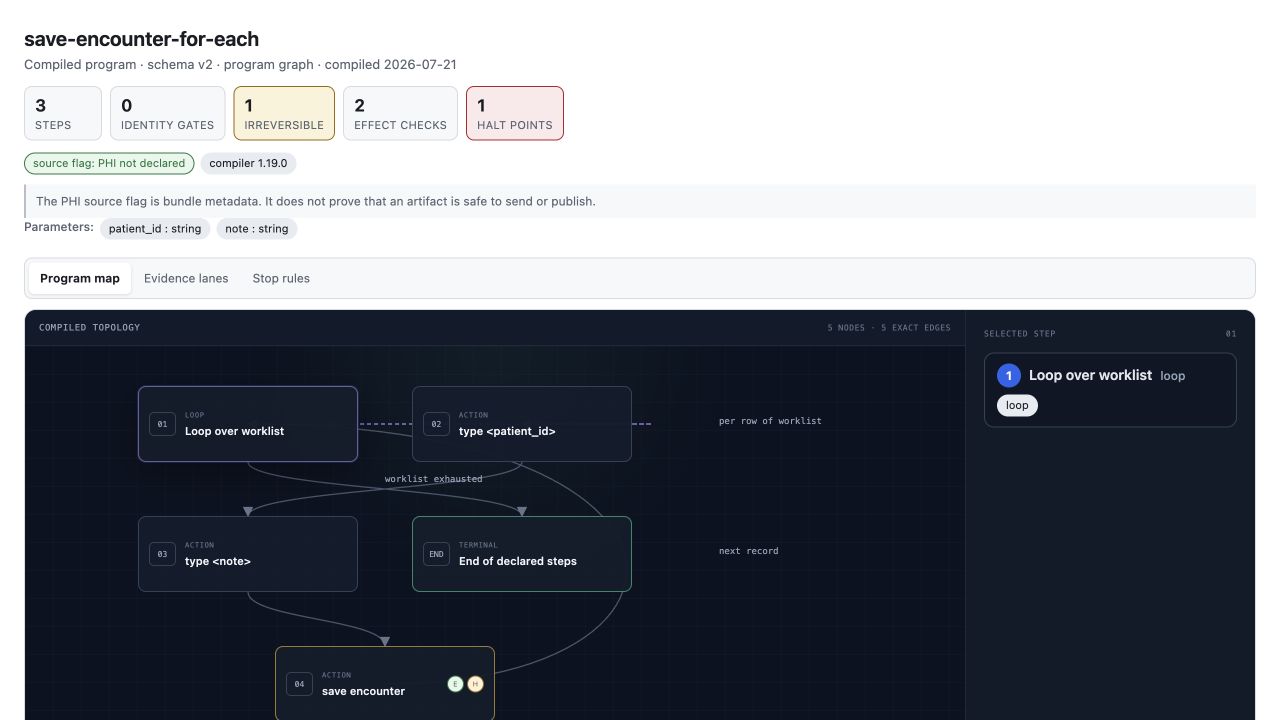

Render the graph offline

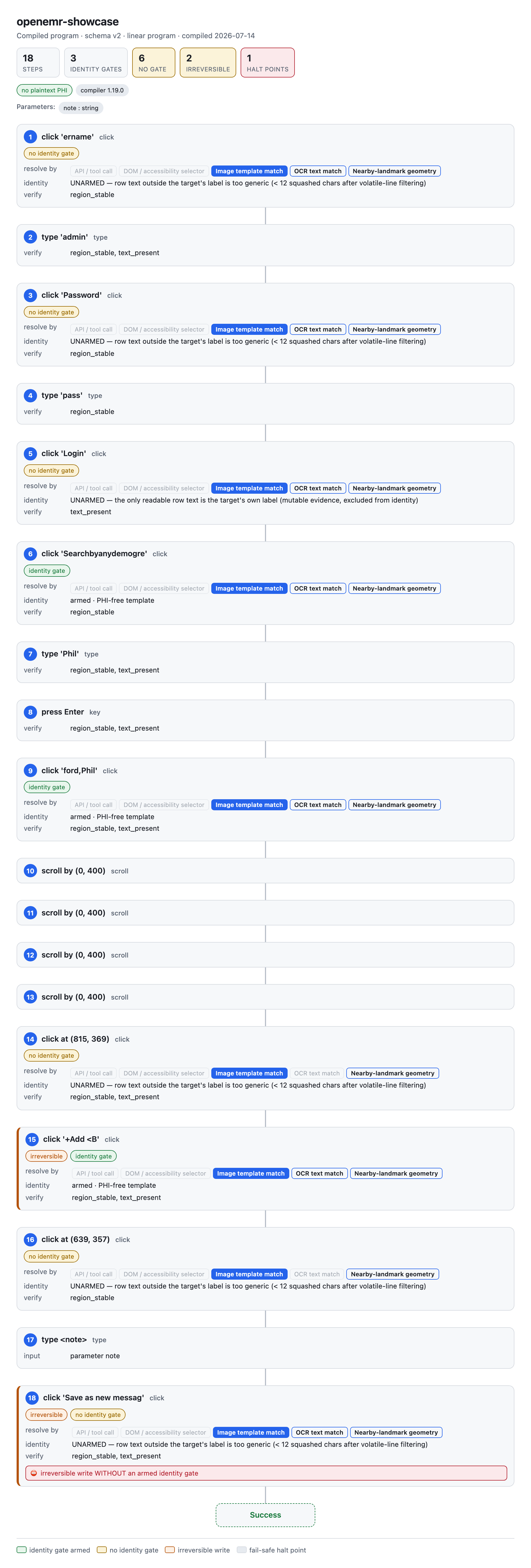

The CLI reads the bundle and writes HTML, Mermaid, or JSON from the same graph specification. HTML is self-contained. It uses a deterministic edge layout and does not load a graph library or a network asset.

openadapt flow visualize bundle -o graph.html
openadapt flow visualize bundle --profile remote-safe -o review.html
openadapt flow visualize bundle --profile public-synthetic -o public.html
openadapt flow visualize bundle --format mermaid
openadapt flow visualize bundle --format json
openadapt flow visualize composed -o composed.html
openadapt flow visualize composed --format mermaid
openadapt flow visualize process-parent -o process.html
openadapt flow visualize process-parent --format mermaid

The offline view keeps the topology and declared controls. A non-local profile removes recorded values, target text, selectors, URLs, guard text, and local provenance.

visualize never runs the workflow. It reads the bundle and describes it with no side effects. You can inspect a bundle that will later refuse certification. The normal order is to visualize the program, lint its contract, qualify the exact version, and then run it.

Rendering choices

The current renderer uses semantic HTML for nodes, SVG for exact edges, and a small deterministic layout function. The website uses controlled CSS motion for its retained event playback. This keeps the offline export self-contained and keeps every node available to a screen reader.

Option	Strength	Cost or limit	Decision
HTML, SVG, and local layout	Small payload, offline output, accessible nodes, exact edge control	The layout code must handle each supported graph form	Use now
React Flow	Strong pan, zoom, selection, and future editing tools	Adds a client dependency and editor concepts that a read-only review does not need	Consider for a future repair editor
ELK or Dagre	Better automatic layout for large nested graphs	Adds bundle weight and can move nodes between releases when layout settings change	Add when real graphs exceed the local layout limits
Mermaid	Easy export into documents	Limited evidence inspector and live-state interaction	Keep as an export format
Canvas or WebGL	Handles very large graphs	Weaker native accessibility and more work for text selection and printing	Do not use for the normal review surface
A pixel-difference library	Useful local review overlay	A difference score is not resolution, identity, or effect evidence	Permit only as a local review aid
A motion library	Useful for complex transitions	More runtime code; animation time can be mistaken for event time	Use controlled CSS motion until a real need appears

The layout switch point should come from measured graph size and interaction latency. It should not come from the wish to make the graph look more animated.

Visual review checklist

Before you approve a program or a run view, check these items:

• Every displayed connection comes from an emitted edge.
• Every live state comes from an exact runtime event.
• A loop occurrence has enough scope data to distinguish it from another pass.
• Recorded and current media have explicit asset and frame references.
• The target rectangle is bound to the displayed frame or is absent.
• A declared gate does not appear as a passed gate.
• A halted run shows whether delivery was attempted or remains unknown.
• A repair appears as a candidate version with a review path.
• A terminal graph state does not appear as a verified business outcome.
• A remote or public view contains only fields allowed by its projection.
